Deskripsi
| Model | |
| Brand | ASUS |
| Series | ROG |

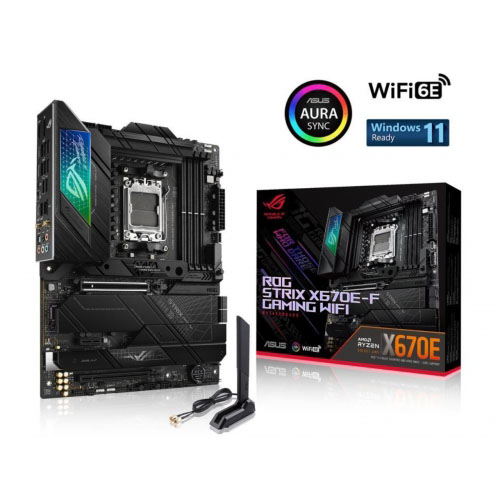

| Model | STRIX X670E-F GAMING WIFI |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
| Chipsets | |
| Chipset | AMD X670E |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 (supports x16 mode) |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 (supports x4 mode) |
| * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| – Impedance sense for front and rear headphone outputs | |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| – Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| – Audio Shielding | |
| – Savitech SV3H712 AMP | |
| – Gold-plated audio jacks | |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| – Audio cover | |
| Onboard LAN | |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6E |
| 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| * WiFi 6E 6GHz regulatory may vary between countries. | |
| Bluetooth | Bluetooth v5.2 |
| Rear Panel Ports | |
| Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x Type-C) |
| 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C) | |
| 2 x USB 2.0 ports | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Intel I225-V 2.5Gb Ethernet port | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Other Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| Physical Spec | |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector | |
| 1 x 6-pin PCIe Graphics Card connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| 1 x Safe Boot button | |
| 1 x Slow Mode switch | |
| 1 x Start button | |
| 1 x V_Latch switch | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Physical Spec | |
| Form Factor | Enhanced Extended ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 10.9″ |
| Power Pin | 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector | |
| 1 x 6-pin PCIe Graphics Card connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
